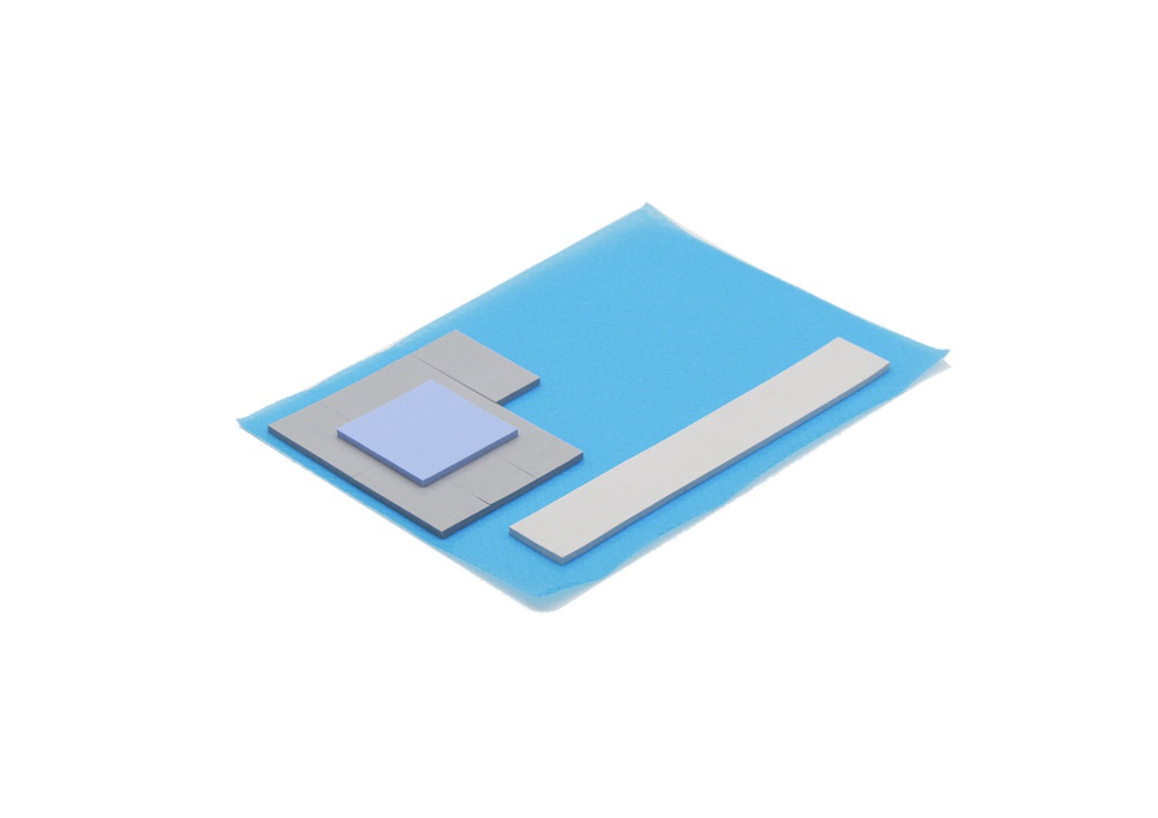

Silicone Thermal Pads for Electronics Cooling & Gap Filling

TaxoTape® TX-STP series Silicone Thermal Pads are widely used thermal interface materials designed to efficiently transfer heat away from electronic components to heat sinks or metal housings. Their soft and compressible structure allows them to conform to uneven surfaces, ensuring reliable thermal contact even in compact or low-pressure assemblies.

Our Silicone Thermal Pad Series provides thermal conductivity options ranging from 1.25 to 25.0 W/m·K, with thicknesses available from 0.25 mm to 12 mm to accommodate different gap-filling requirements. The material combines flexible silicone elastomers with thermally conductive ceramic fillers to deliver stable thermal performance across a wide operating temperature range.

These pads are naturally tacky and can adhere to components without additional adhesive layers, enabling quick installation and clean assembly processes. The conformable structure helps eliminate air gaps between heat sources and cooling components, improving heat dissipation and enhancing long-term device reliability.

For specialized applications, this product family also includes low-volatility thermal pads for optical systems and boron nitride–filled low-dielectric pads for electrically sensitive electronics, offering additional performance advantages for demanding environments.

Silicone thermal pads are commonly used in LED lighting systems, power electronics, EV battery modules, communication equipment, and high-performance computing hardware, where effective thermal management is critical to system stability and lifespan.

Standard Silicone Thermal Pads

General-purpose thermal interface pads are designed for reliable heat transfer between electronic components and heat sinks. These pads offer a balance of thermal conductivity, flexibility, and cost efficiency, making them suitable for a wide range of electronics cooling applications.

Low-Volatility Silicone Thermal Pads

Low-volatility pads are specifically engineered for optical devices and sealed electronic assemblies where outgassing must be minimized. By controlling low-molecular siloxane emissions, these materials reduce the risk of contamination, fogging, or optical degradation inside sensitive systems such as camera modules, surveillance equipment, and laser devices.

Low-Dielectric Thermal Pads (BN-Filled)

Boron nitride–filled silicone pads offer low dielectric constant and excellent electrical insulation, making them suitable for high-frequency electronics and communication equipment. The lightweight formulation also helps reduce overall component weight while maintaining stable thermal performance.

Applications

Silicone thermal pads are widely used across modern electronic systems, including:

• LED lighting modules and drivers

• Power supplies and power electronics modules

• EV battery systems and charging equipment

• Heatsinks and device housings

• Graphics cards, M.2 SSDs, and memory modules

• Networking and optical communication equipment

• AI hardware and high-performance computing systems

• Security and surveillance electronics

• Medical electronic devices

• Semiconductor testing equipment
