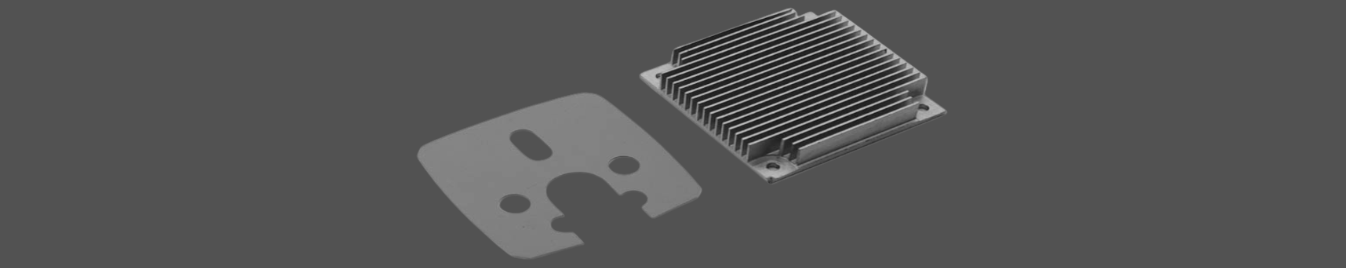

The Role of Compression Set in Silicone Thermal Pads

Introduction: Why Compression Set Matters in Thermal Interface Materials

Silicone thermal pads are widely used as thermal interface materials (TIMs) in electronic assemblies where heat needs to be transferred efficiently from heat-generating components to heat sinks or enclosures. Their popularity comes from a balanced combination of thermal conductivity, electrical insulation, flexibility, and ease of assembly. Compared with greases or gels, thermal pads offer cleaner handling and more consistent thickness control, which makes them suitable for mass production.

When selecting silicone thermal pads, engineers usually focus on a few key performance indicators. Thermal conductivity is often the first parameter considered, followed by thickness, hardness, breakdown voltage, and operating temperature range. These indicators are easy to compare on datasheets and are directly related to initial thermal performance and assembly compatibility.

However, in long-term applications, especially those exposed to continuous heat and mechanical stress, these initial parameters do not tell the full story. Compression set is one of the properties that is frequently overlooked during material selection, yet it plays a critical role in maintaining stable thermal performance over time. A thermal pad that performs well at the beginning of its service life may gradually lose effectiveness if it cannot recover after prolonged compression.

What Is Compression Set in Silicone Thermal Pads?

In simple engineering terms, compression set describes how well a material can return to its original thickness after being compressed for a certain period of time under defined conditions. For silicone thermal pads, it reflects the material’s ability to maintain elasticity after long-term clamping between components.

When a thermal pad is installed, it is compressed to fill air gaps and create intimate contact between mating surfaces. Over time, especially at elevated temperatures, some materials tend to deform permanently. A high compression set means the pad does not fully recover once the compressive force is released, indicating permanent deformation. A low compression set means better resilience and thickness recovery.

Compression set is typically evaluated by compressing a test sample to a fixed percentage of its original thickness, holding it at a specified temperature for a certain duration, and then measuring how much thickness is recovered after release. While different test conditions can be used, the basic principle remains the same: measuring permanent deformation after compression and heat exposure.

For silicone-based thermal pads, compression set values can vary widely depending on formulation and filler system. In general, standard silicone thermal pads may show compression set values in the range of 20% to 40%, while specially formulated low-compression-set materials can achieve significantly lower values under comparable conditions. The exact number is less important than understanding how it affects real-world performance.

How Compression Set Affects Thermal Performance Over Time

The thermal performance of a silicone thermal pad depends heavily on consistent contact pressure between the heat source and the heat sink. Adequate pressure helps minimize interfacial air gaps, which are a major source of thermal resistance. Compression set directly influences the ability of a thermal pad to maintain this contact pressure over time.

As compression set increases, the pad gradually loses its ability to exert elastic force against the mating surfaces. This reduction in contact pressure can lead to the formation of micro air gaps, especially after thermal cycling or vibration. Even small gaps can significantly increase thermal resistance, reducing heat dissipation efficiency.

In the short term, a thermal pad with higher compression set may still meet thermal requirements during initial testing or early operation. However, as operating hours accumulate, permanent deformation can cause a noticeable rise in junction temperature. This effect is often misattributed to system aging or power fluctuation, when the root cause lies in the mechanical behavior of the thermal interface material.

Long-term thermal stability depends not only on thermal conductivity but also on the material’s ability to maintain its mechanical integrity under continuous load and temperature. Compression set therefore becomes a key factor in applications where reliability over years, rather than months, is required.

Compression Set vs Other Mechanical Properties

Compression set is sometimes confused with other mechanical properties such as hardness or thickness recovery, but they are not interchangeable.

Hardness, typically measured on the Shore scale, indicates how resistant a material is to indentation. A softer thermal pad usually conforms better to surface irregularities, but softness alone does not guarantee low compression set. Some soft materials may permanently deform more easily under long-term compression.

Thickness recovery is closely related to compression set but focuses more on short-term elastic rebound rather than permanent deformation after prolonged exposure. A material may show good immediate recovery after brief compression, yet still exhibit high compression set after extended time at elevated temperature.

Importantly, a low compression set does not necessarily mean a harder material. Through formulation adjustments, it is possible to achieve a balance where a thermal pad remains compliant while still offering good long-term resilience. Understanding these distinctions helps engineers avoid over-simplified material selection based solely on a single mechanical parameter.

Application Scenarios Where Compression Set Is Critical

Compression set becomes particularly important in applications where thermal pads are exposed to continuous pressure and heat over long service periods.

LED lighting modules often operate at elevated temperatures for extended hours, with limited maintenance access. A thermal pad with high compression set may lead to gradual lumen degradation due to increasing junction temperature.

Power supplies and inverters rely on stable thermal paths to ensure component reliability. In these systems, thermal pads are usually clamped tightly, making long-term elastic stability essential for consistent heat transfer.

Battery modules and energy storage systems involve repeated thermal cycling during charge and discharge. Compression set resistance helps maintain contact integrity despite expansion and contraction of surrounding components.

Industrial electronics with long service life, such as control units and automation equipment, are expected to operate reliably for many years. In such cases, compression set is a key indicator of whether a thermal pad can support long-term thermal management without performance drift.

Factors That Influence Compression Set in Silicone Thermal Pads

Compression set is not a single, isolated property. It is influenced by multiple material and application-related factors that work together over the lifetime of a thermal pad.

Silicone formulation and filler system
The base silicone polymer and the type, size, and loading level of thermal fillers have a direct impact on compression set behavior. While fillers are necessary to improve thermal conductivity, they can also restrict polymer chain mobility. A well-balanced formulation allows the material to remain compliant while resisting permanent deformation. Poorly optimized filler systems may improve thermal performance but significantly increase compression set.

Operating temperature and thermal cycling
Elevated temperatures accelerate material aging and can cause gradual loss of elasticity. In applications with frequent thermal cycling, repeated expansion and contraction place additional mechanical stress on the thermal pad. Over time, this stress contributes to permanent deformation, especially if the material is not designed for long-term heat exposure.

Compression ratio and assembly design
Excessive compression during assembly is a common but often underestimated contributor to high compression set. Thermal pads are typically designed to operate within a specific compression range. Compressing beyond this range may improve initial contact but can lead to faster mechanical fatigue and reduced recovery.

Aging and environmental exposure
Long-term exposure to humidity, chemicals, or contaminants can also affect compression set. Although silicone materials are generally stable, harsh environments may accelerate degradation, reducing the material’s ability to maintain its original thickness and elasticity.

How Engineers Should Evaluate Compression Set When Selecting Thermal Pads

Compression set should be evaluated in the context of the application rather than treated as a standalone datasheet number.

When compression set should be a priority
Compression set becomes especially important in applications with long service life, limited maintenance access, and continuous thermal load. Systems designed for years of operation, rather than short-term performance validation, benefit the most from low compression set materials.

Typical design mistakes related to compression set
One common mistake is focusing only on initial thermal resistance while ignoring long-term mechanical behavior. Another is assuming that a softer pad will always perform better, without considering its ability to recover after prolonged compression. Over-compressing the pad during assembly is also a frequent issue that leads to premature performance loss.

Practical tips for material selection and testing
Engineers should consider compression set together with operating temperature, expected service life, and assembly conditions. Where possible, aging or thermal cycling tests under realistic compression levels provide more meaningful insight than room-temperature data alone. Evaluating thickness change after simulated use can reveal potential long-term risks early in the design phase.

Balancing Compression Set and Thermal Conductivity

In practice, material selection often involves trade-offs between mechanical resilience and thermal performance.

Trade-offs between mechanical resilience and thermal performance
Higher thermal conductivity usually requires higher filler loading, which can reduce elasticity and increase compression set. Conversely, materials optimized for low compression set may sacrifice some thermal conductivity. The optimal choice depends on whether long-term stability or peak thermal performance is more critical for the application.

Why higher thermal conductivity is not always the best choice
A thermal pad with very high thermal conductivity may perform well initially but lose contact pressure over time due to high compression set. In such cases, the effective thermal resistance of the interface may actually increase during operation, offsetting the benefit of higher conductivity.

Design-oriented selection mindset
Rather than selecting materials based on a single datasheet value, engineers benefit from a system-level approach. Considering compression set alongside thermal conductivity, thickness, and assembly constraints leads to more reliable thermal management over the product’s lifetime.

Conclusion: Compression Set as a Long-Term Reliability Indicator

Compression set plays a critical role in the long-term performance of silicone thermal pads. While it may not significantly affect initial thermal measurements, it strongly influences the ability of a thermal interface to maintain contact pressure and low thermal resistance over time.

For engineers and purchasing teams, understanding compression set helps avoid performance drift, unexpected temperature rise, and premature system degradation. Evaluating this property early in the design process supports more reliable and predictable thermal management.

As electronic systems continue to demand longer service life and higher power density, compression set should be viewed not as a secondary parameter, but as a key indicator of long-term reliability.
