How to Apply Thermal Paste？

Introduction

Thermal paste might look like a small detail in any electronics build — but applying it correctly can make a big difference. A good thermal paste application ensures that heat moves efficiently from your chip or power module to the heatsink or metal casing.

If you don’t apply it properly, you risk leaving air pockets or uneven contact. This can create hotspots, cause poor heat transfer, and even lead to unexpected shutdowns or long-term damage to CPUs, GPUs, LED drivers, or power modules. In short: the right paste, applied the right way, protects your investment and keeps your devices running stable under load.

What You Need Before You Start

Before you apply thermal paste, make sure you have the right tools and know which paste best fits your application.

Recommended tools:

Lint-free cloth or microfiber wipes

Isopropyl alcohol (90% or higher)

Plastic card or spreader (optional)

Gloves (optional but good for keeping things clean)

Types of thermal paste:

Thermal pastes come in different base materials:

Metal-based: Often used for maximum heat transfer but needs careful handling due to conductivity.

Ceramic-based: A good balance of safe application and solid thermal performance.

Silicone-based: Versatile and cost-effective, great for general electronics like LED drivers or battery modules.

We offer a full range of thermal pastes — from high-performance metal and ceramic blends to easy-to-apply silicone compounds — so you can choose what works best for your power modules, PCBA, inverters, or LED systems.

Preparing the Surface

Before adding new thermal paste, always remove any old paste or debris. Leftover residue can prevent the new paste from bonding well and block proper heat transfer.

How to clean:

Use a lint-free cloth or microfiber wipe with a small amount of high-purity isopropyl alcohol.

Wipe gently but thoroughly until both the chip and heatsink surfaces are clean and dry.

Never use water or rough clothes that might scratch the surface.

Check for damage:

Inspect your heatsink and chip for scratches, dents, or warping. Any damage can reduce contact area and lower thermal performance.

Handle with care:

Always hold components by the edges to avoid leaving fingerprints or dust. If you’re working on a sensitive PCBA or high-power module, wearing gloves can help keep everything clean and static-free.

How Much Thermal Paste Should You Use?

Using the right amount of thermal paste is just as important as cleaning the surfaces. Too much can spill over the sides or cause bubbles; too little leaves air pockets that block heat transfer.

Right amount for different applications:

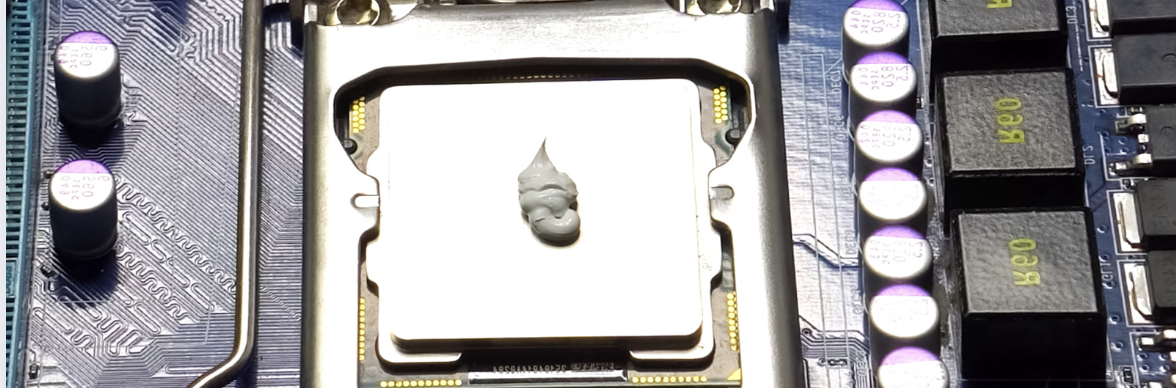

For CPUs or GPUs, a pea-sized dot in the center usually works well.

For power modules or larger chips, a thin line or several small dots across the heat spreader may give better coverage.

For LED drivers or battery modules, follow the recommended pattern based on your module size and mounting pressure.

Common application methods:

Pea dot: Simple and effective for small to medium chips.

Line method: Good for rectangular dies or power modules.

Spread method: Some prefer to use a plastic card to spread a thin, even layer — but this must be done gently to avoid trapping air.

Why it matters:

If you use too much, the paste may squeeze out when mounting the heatsink, wasting material and potentially contaminating nearby parts. Too little means gaps remain, leading to hotspots and reduced cooling performance.

By following these steps, you help your thermal paste work as intended — giving your CPUs, power modules, or LED drivers the stable thermal connection they need to run safely and efficiently.

Step-by-Step Guide to Applying Thermal Paste

Follow these basic steps to make sure your thermal paste does its job properly:

1. Power down and disconnect.

Always turn off your device and unplug it. For industrial modules, make sure all power sources are safely shut off.

2. Clean both surfaces:

Remove old paste and clean the heatsink and chip as explained above.

3. Apply paste using your chosen method:

Place a small pea-sized dot, thin line, or spread an even layer, depending on the component and your preference.

4. Mount heatsink with proper pressure:

Carefully position the heatsink straight down onto the chip. Tighten screws or clips evenly, using the pattern recommended by the manufacturer to apply even pressure.

5. Check for even spread (if rechecking):

If you’re unsure, you can gently lift the heatsink once to see if the paste has spread evenly — but this should only be done when testing, not on the final install.

Common Mistakes to Avoid

Even experienced builders sometimes make small errors that can reduce thermal performance:

Too much or too little paste:

Over-application can squeeze out and cause mess or shorts, while too little leaves gaps that trap heat.

Mixing different pastes:

Combining old and new paste or different types can reduce performance and cause unpredictable results.

Touching paste with bare fingers:

Skin oils or dust can contaminate the paste and weaken its thermal conductivity.

Forgetting to reapply when needed:

Thermal paste can dry out or pump out over time, especially in high-power modules that cycle frequently.

When Should You Reapply Thermal Paste?

Thermal paste isn’t always permanent. Here’s when it’s smart to replace it:

Signs of dry-out or pump-out:

If you notice rising temperatures, frequent shutdowns, or inspect the TIM and see cracks or dried spots, it’s time to replace it.

Routine maintenance:

For industrial equipment like power modules, LED drivers, or high-load servers, regular thermal checks and paste replacement help keep performance stable.

Replacing or upgrading parts:

Whenever you remove a heatsink — for repairs, upgrades, or inspections — always clean off the old paste completely and apply a fresh layer.

Final Thoughts: Why Quality Paste and Correct Application Matter

Thermal paste is a small part of your build, but it plays a big role in keeping your equipment stable. Using a cheap, low-quality paste often leads to weak heat transfer, faster dry-out, and unexpected thermal failures.

When you combine a well-made thermal paste with careful, proper application, you get more reliable heat dissipation, fewer hotspots, and longer life for your CPU, GPU, power module, or LED driver. In other words: the right paste plus the right technique equals a stable system that performs as designed.
